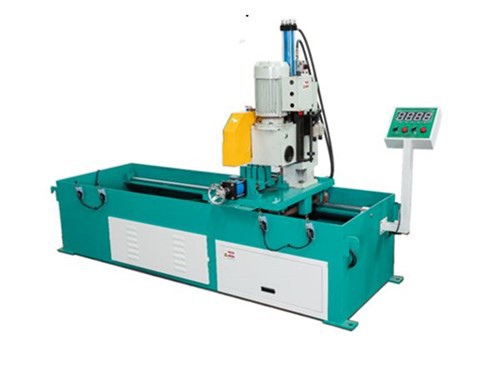

The Servo Tube Cutting Machine is a high-precision, fully automated system for fixed-length cutting of metal tubes. Powered by a Xinje servo motor and CNC control, it achieves ±0.05 mm accuracy, ideal for welding, polishing, or assembly. Designed for production line integration, it automatically cuts stainless steel, carbon steel, and aluminum tubes (Φ6–25 mm, 0.3–2.0 mm wall thickness) with online capability for continuous, efficient operation.
Products Description：
Servo Control System: Achieves precise control and efficient operation through PLC and servo motors.
High-Precision Cutting Tools: Utilizes high-strength saw blades or cutting tools to ensure cutting quality and longevity.
Cooling System: Equipped with a recirculating cooling device to extend tool life and enhance cutting quality.
Online Monitoring: Real-time monitoring of the cutting process to ensure stable product quality.
Technical Parameters：
|
Cut stainless steel tubes to fixed length online |
|
|
Diameter range (mm) |
Φ6 to Φ25 |
|
Wall thickness (mm) |
0.3 to 2.0 |
|
Suitable materials |
201, 304, 321, 840, 800, 316, 310, etc. |
|
Production speed (m/min) |
0.3 to 12.0 |
|
Cut Length (M) |
0 to 6 |
|
Machine base |
Frame welded with steel plate, side plate 8mm |
|
Cutting head |
Vertical cutting head |
|
Motor |
Xinje servo motor |
|
Touch screen |
7-inch Kunlun Tongtai or equivalent brand |
|
Movement method |
Up and down movement uses hydraulic cylinder, front and back movement uses servo motor with sliding screw |
|
Guide rail |
Circular guide rail |
