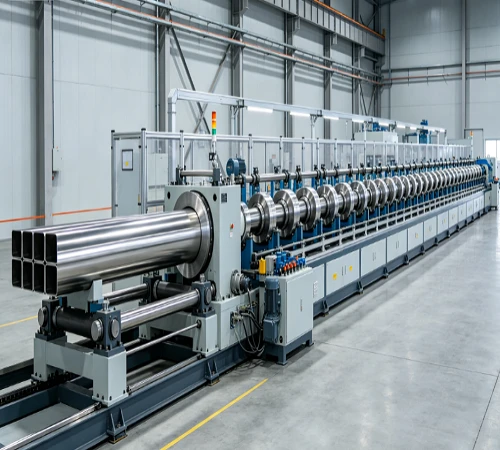

Stainless Steel Square Tube Making Machine

High-Precision Roll Forming: Multi-stage precision forming stations engineered with high-grade alloy steel ensure exact square geometry, sharp and clean corner definitions, and uniform dimensional stability across long production runs.

Advanced Welding Integration: Supports state-of-the-art TIG, laser, or combined welding systems, delivering deep penetration, smooth and seamless joints, and maximum resistance to corrosion along the weld line.

High-Speed Operational Stability: Rigorously balanced transmission systems and heavy-duty gearboxes allow continuous, high-speed manufacturing without compromising structural uniformity or surface finish.

Superior Dimensional Accuracy: Engineered sizing and straightening units tightly control tolerances, achieving strict side length accuracy within plus or minus 0.10 millimeters, superior straightness ratings, and precise diagonal symmetry.

Intelligent Automation and Control: Centralized PLC programming combined with an intuitive human-machine interface allows operators to adjust speeds, monitor real-time production parameters, store recipe profiles, and trigger automated diagnostics.

Heavy-Duty Mechanical Durability: Built with thermally treated rollers, precision-ground shafts, and heavy-duty bearings to withstand high mechanical stress, drastically extending operational life and lowering routine maintenance requirements.

Stainless Steel Coil: Raw material staging and loading onto the uncoiler mandrel.

Decoiler: Unwinding the stainless steel strip with constant tension control.

Strip Accumulator: Storing material to ensure uninterrupted, continuous manufacturing during coil changes.

Precision Roll Forming: Gradually shaping the flat strip through sequential breakdown and fin passes.

TIG / Laser Welding: Fusing the tube edges securely using high-energy welding sources.

Weld Bead Grinding: Removing internal and external weld flash for a smooth surface profile.

Sizing Section: Calibrating the tube perimeter to exact specifications.

Square Tube Forming: Reshaping the profile into precise square and rectangular geometries.

Straightening: Eliminating residual internal stresses and ensuring optimal linear alignment.

Online Inspection: Continuously monitoring surface defects and dimensional parameters.

Flying Cutting: Synchronized automated cutting to exact specified lengths without deformation.

Finished Tube Collection: Automated discharge and stacking of final products.

Decoiler: Heavy-duty hydraulic or mechanical uncoiler designed for stable strip release and edge protection.

Strip Accumulator: Loop storage unit that guarantees continuous line speed and welding continuity.

Forming Mill: The primary structural backbone containing driven and idle roll stands for initial profiling.

Welding Unit: Precision torch or laser optic assembly equipped with protective shielding gas management.

Weld Bead Grinder: Specialized trimming and polishing assembly to refine the weld seam area.

Sizing Mill: Advanced roll cluster configuration responsible for final dimensional perfection.

Straightener: Multi-direction roller alignment assembly to correct twisting and curvature.

Flying Saw: High-speed cutoff mechanism governed by digital encoders for precise length cutting.

Automatic Stacker: Mechanical bundle collector that streamlines post-production handling.

PLC Control Cabinet: Enclosed electrical hub housing industrial automation hardware and drive inverters.

Construction and Architecture: Structural framing, handrails, balustrades, and architectural metalwork.

Decorative Interior Design: Luxury interior fixtures, partition frames, trim elements, and display structures.

Furniture Manufacturing: Modern metal furniture frames, table legs, chair supports, and shelving units.

Automotive Industry: Exhaust components, bus frame structures, trim molding, and protective guards.

Industrial Fluid Conveyance: Piping networks for chemical processing, water treatment, and industrial fluids.

Mechanical and Structural Engineering: Machine frames, load-bearing pillars, and structural brackets.

Food and Medical Equipment: Sanitary framework, processing machinery chassis, and hospital furniture.
