The ST40-100 series automated aluminum tube making machine is a high-precision tube mill production line designed for aluminum tube production. It goes through a series of tube-making processes such as uncoiling, forming, and welding to manufacture aluminum tubes of various specifications. These tubes can be used in a variety of applications, including construction, automotive, and decoration sectors.
Advanced Aluminum Tube Mill Capabilities
Smart Automation
- CNC-controlled programmable logic for seamless operation and minimal manual intervention.
- High-speed production rates (up to 20 meters per minute) with consistent output.
Multi-Profile Flexibility
- Adjustable diameter, thickness, and length parameters (ranging from 9.5 mm to 273 mm).
- Inter -changeable tooling for TIG/laser welding, cold forming, and polishing processes.
Precision Engineering
- Laser-guided alignment ensures accuracy within ±0.1 mm tolerance.
- Built-in quality monitoring with real-time defect detection.
Scalable & Durable:
- Modular design for easy expansion as production needs grow.
- Heavy-duty construction with corrosion-resistant components for long-term reliability.

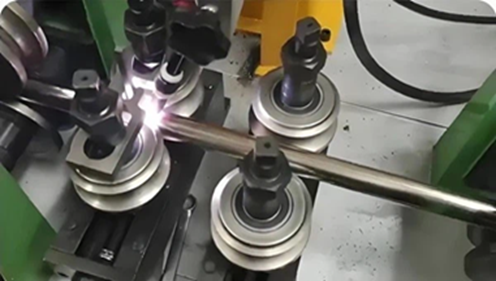

Aluminum Tubing Work Flow
Aluminum Tubing Solutions
Standard Specifications
|
Model number |
Horizontal axis diameter |
Vertical shaft diameter |
Pipe range |
Wall thickness |
Motor power |
Grinding head set |
Straightener |
Host size (mm) |
Pipe making speed |
|
ST40 |
ϕ40mm |
ϕ25mm |
ϕ9.5-50.8mm |
0.21-3.0mm |
7.5kw*2 |
3*3kw |
2PCS |
7600*1150 |
2.0-24 |
|
ST50 |
ϕ50mm |
ϕ30mm |
ϕ25.4-76mm |
0.3-3.5mm |
11kw*2 |
3*3kw |
2PCS |
9000*1200 |
0.5-10 |
|
ST60 |
ϕ60mm |
ϕ40mm |
ϕ50.8-114mm |
0.5-4.0mm |
15kw*2 |
3*4kw |
2PCS |
11000*1500 |
0.5-8.0 |
|
ST80 |
ϕ80mm |
ϕ50mm |
ϕ89-159mm |
1.0-5.0mm |
22kw*2 |
3*5.5kw |
2PCS |
12900*2100 |
0.5-5.0 |
|
ST100 |
ϕ100mm |
ϕ70mm |
ϕ114-273mm |
1.0-6.0mm |
30kw*2 |
3*5.5kw |
3PCS |
14000*2300 |
0.4-3.0 |
Typical Applications
Ideal for sectors requiring high-volume, precision tubing:
Automotive
Lightweight chassis components
EV battery cooling tubes
Exhaust system piping
Construction
Curtain wall structural tubing
Solar panel framing systems
Modular building connectors
HVAC
Refrigerant line production
Heat exchanger coils
Air duct components
Enhance Your Tube Production Line
Robust auxiliary systems to maximize efficiency, quality, and uptime.
Everything You Need to Know
Your Ultimate Guide to Selecting High-Performance Steel Tube Production Line
Can it process different aluminum alloys like 6061-T6 or 7075?
Yes, our mills handle all commercial grades including:
✓ 1000-8000 series alloys
✓ Temper variations (T4, T6, T651)
✓ Clad aluminum composites
What tolerance can be achieved for square aluminum tubes?
We guarantee:
• ±0.02mm outer dimension accuracy
• ±0.03mm wall thickness consistency
• ≤0.15mm/m straightness deviation
Can we produce both round and square tubes on the same line?
Yes, our quick-change system allows profile switching in <15 minutes with:
• Pre-calibrated tooling sets
• Automated profile memory recall
• Guided changeover instructions on HMI
What safety standards do your machines meet?
Full compliance with:
• CE Machinery Directive 2006/42/EC
• ISO 13849-1 (Safety of machinery)
• ANSI B11.20 (Manufacturing systems)
