The ST80 Mechanical Structure Tube Mill is a heavy-duty production line designed for high-strength applications. It produces welded steel tubes with diameters from Φ89 to Φ159 mm and wall thicknesses from 2.0 to 5.0 mm, ensuring excellent structural integrity, dimensional accuracy, and durability under high loads and dynamic stresses. Featuring high-frequency or laser welding, precision forming, and advanced surface treatment, the ST80 delivers reliable, industrial-grade output at speeds up to 6 m/min-ideal for manufacturers of structural and mechanical components.
Key Technologies & Advantages
High-Precision Forming
Ensures dimensional accuracy and consistent tube shape.
Strong Welding Performance
TIG/laser welding for durable, high-integrity seams.
Smart Automation
PLC + HMI control for stable, real-time operation.
Energy-Efficient Design
Reduces power consumption by up to 25%.
Structural Tube Production Process
Uncoiling: Steel coil is fed into the machine.

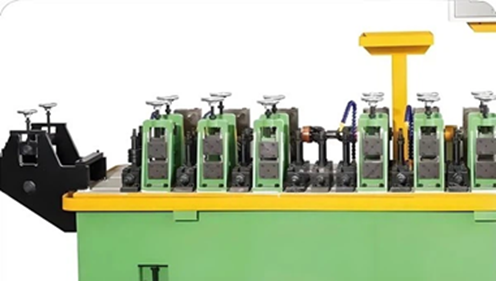

Forming: Strip is shaped into a round tube via precision rolls.
Welding: HF/TIG/Laser creates a seamless joint.
Weld Grinding: Internal and external weld beads removed.

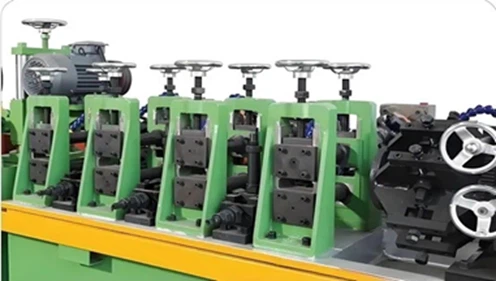

Sizing & Straightening: Final dimensions achieved.
Cutting: Circular, band, or laser saw cuts tubes to length.
Output: Finished tubes collected for inspection or shipment.
Technical Specifications
|
Model |
ST80 |
|
Tube making mode |
High-frequency welding / Laser welding |
|
Working temperature |
-0℃--42℃. |
|
Work schedule |
7-24hrs |
|
Unit No-Load speed |
0--15m/min |
|
Tube making range (mm) |
Φ89～Φ159 |
|
Tube making thickness (mm) |
δ2～δ5 |
|
Production length (m/min) |
0～6 |
|
Horizontal shaft diameter (mm) |
Φ80 |
|
Vertical shaft diameter (mm) |
Φ50 |
|
Outer diameter tolerance (mm) |
±0.1 |
|
Length diameter Tolerance |
6m±2.0mm |
|
Straightness |
≦1.5mm/m |
|
Main motor power (KW) |
22×2 sets |
|
Polishing motor power (KW) |
3*4KW |
|
Overall machine power (KW) |
62KW |
|
Power supply |
380V±5%V/3, 50HZ±3%HZ |
Witness Structural Sqaure Tube Production
Wide-Ranging Applications
Building & Construction
Structural frameworks, roof trusses, fence posts, and scaffolding.
Transportation & Logistics
Truck trailers, container frames, forklift arms, and storage racking systems.
Agricultural & Heavy Equipment
Farm machinery, support frames, and protective structures (ROPS/FOPS).
Furniture & Decor
High-strength furniture frames, exhibition stands, and architectural features.
Enhance Your Tube Production
Everything You Need to Know
What materials can this machine process?
Compatible with carbon steel, structural steel (Q235, Q345), and some stainless grades. Suitable for high-strength mechanical applications.
Can it produce tubes for pressure vessels?
Yes. With laser welding and optional hydrostatic testing, the ST80 meets ASME Section VIII and EN 13445 standards for pressure equipment.
Do you offer customization?
Yes. We provide OEM/ODM services, including custom tube sizes, voltage adjustments, multilingual HMI, and integration with polishing or packaging machines.
How often does the machine need maintenance?
Lubricate rollers every 200 hours; replace carbide guides after 10,000+ hours. The PLC system provides maintenance alerts.
