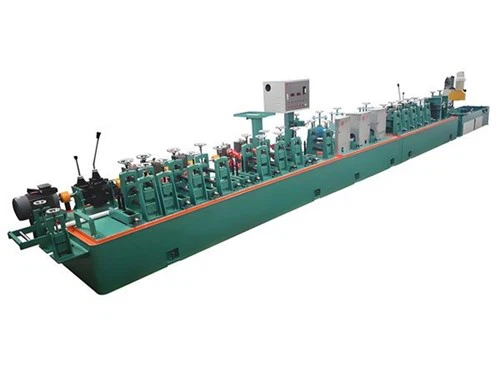

Engineered for demanding oil & gas applications, the ST40-100 industrial tube mill delivers ±0.05mm dimensional accuracy and ISO-certified quality control, producing corrosion-resistant stainless steel tubing for critical petrochemical operations. With CE certification and 26+ years of metallurgical expertise, we deliver equipment that minimizes downtime while maximizing output.
Robust Construction: Heavy-duty rollers/frames ensure durability.
Customizable Range: Handles 9.5mm-273mm diameters.
Energy Efficiency: Lowers operational costs via optimized power.
Smart Automation: PLC-controlled real-time monitoring.
Precision Roll Forming
Maintains <0.1% ovality for high-pressure pipeline compliance
Smart Speed Control
5X faster than conventional mills for batch order flexibility
Zero-Defect Welding
TIG/Laser hybrid system reduces pinhole risks (API 5L compliant)
Energy Optimization
15-20% lower power consumption than equivalent models
Petrochemical Tube Production Process
Technical Specifications
|
Model number |
Horizontal axis diameter |
Vertical shaft diameter |
Pipe range |
Wall thickness |
Motor power |
Grinding head set |
Straightener |
Host size (mm) |
Pipe making speed |
|
ST40 |
ϕ40mm |
ϕ25mm |
ϕ9.5-50.8mm |
0.21-3.0mm |
7.5kw*2 |
3*3kw |
2PCS |
7600*1150 |
2.0-24 |
|
ST50 |
ϕ50mm |
ϕ30mm |
ϕ25.4-76mm |
0.3-3.5mm |
11kw*2 |
3*3kw |
2PCS |
9000*1200 |
0.5-10 |
|
ST60 |
ϕ60mm |
ϕ40mm |
ϕ50.8-114mm |
0.5-4.0mm |
15kw*2 |
3*4kw |
2PCS |
11000*1500 |
0.5-8.0 |
|
ST80 |
ϕ80mm |
ϕ50mm |
ϕ89-159mm |
1.0-5.0mm |
22kw*2 |
3*5.5kw |
2PCS |
12900*2100 |
0.5-5.0 |
|
ST100 |
ϕ100mm |
ϕ70mm |
ϕ114-273mm |
1.0-6.0mm |
30kw*2 |
3*5.5kw |
3PCS |
14000*2300 |
0.4-3.0 |
Watch the Petrochemical Tube Mill in Action
Ideal for Petrochemical Applications
Our industrial tube mills are engineered for industries requiring extreme precision, including:
Everything You Need to Know
Your Ultimate Guide to Selecting High-Performance Steel Tube Production Line
What materials can this petrochemical tube mill machine process?
Our tube mill machine is designed for stainless steel grades 304, 316, 321, and Duplex 2205 , ensuring corrosion resistance in harsh environments like H₂S/CO₂-rich oil fields or offshore platforms. It also supports customization for nickel alloys (e.g., Inconel 625) upon request.
Can the mill produce pipes for LNG applications?
Yes! Specifically designed for cryogenic pipelines (-196°C), featuring anti-fracture welding and PED 2014/68/EU certification.
How long is the warranty period?
We offer a 12-month warranty covering mechanical and electrical components, plus an optional extended 2-year maintenance plan with quarterly preventive checks.
Can the machine be integrated with existing automation systems in smart factories?
Yes. The PLC control system supports Industry 4.0 protocols (OPC UA, Modbus TCP) for seamless integration with MES/SCADA platforms in smart manufacturing facilities.
