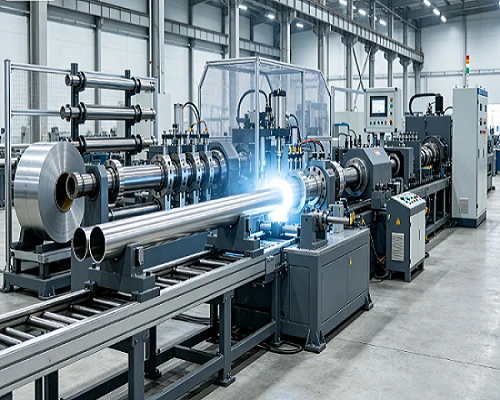

The High Speed TIG Tube Making Machine is an advanced tube production solution engineered specifically for manufacturing high-quality stainless steel tubes and pipes with exceptional efficiency, dimensional precision, and structural reliability.
Integrating state-of-the-art TIG welding technology with high-speed forming mechanisms, precision roll design, and intelligent automation control systems, this tube mill ensures stable, continuous production performance. It is tailored for modern industrial manufacturers producing decorative tubes, industrial fluid pipes, sanitary tubing, heat exchanger tubes, and precision automotive components.
Optimized mechanical structures and intelligent electrical controls empower plant operators to maximize throughput, minimize material waste, and achieve long-term operational stability. Complete custom engineering services cover everything from initial layout planning to machinery manufacturing, installation guidance, and comprehensive technical support.
Main Technical Specifications
|
Parameter |
Specification |
|
Machine Type |
High Speed TIG Tube Making Machine |
|
Application |
Stainless Steel Welded Tube Production |
|
Welding Method |
TIG (Tungsten Inert Gas) Welding |
|
Tube Material |
Stainless Steel, Carbon Steel, Alloy Steel (Optional) |
|
Tube Shape |
Round Tube, Square Tube, Rectangular Tube (Optional) |
|
Production Process |
Uncoiling → Forming → TIG Welding → Sizing → Cutting |
|
Production Speed |
High Speed Production Design (Customized According to Tube Size and Material) |
|
Tube Diameter Range |
Customized According to Customer Requirements |
|
Tube Thickness Range |
Customized According to Customer Requirements |
|
Coil Width Range |
Customized Based on Tube Specifications |
|
Line Direction |
Left-to-Right / Right-to-Left (Optional) |
|
Control System |
PLC + Touch Screen HMI |
|
Drive System |
AC Motor + Precision Gear Transmission |
|
Welding Control |
Digital TIG Welding Control System |
|
Cutting Method |
Cold Saw Cutting / Flying Saw Cutting (Optional) |
|
Operation Mode |
Automatic / Semi-Automatic |
|
Power Supply |
Customized According to Customer Country Standard |
|
Installation Type |
Complete Production Line Solution |
Product Highlights
High-Speed Production Capability: Engineered for high-volume manufacturing environments, utilizing optimized forming kinematics and high-speed transmission to ensure continuous output while minimizing downtime and material scrap.
Advanced TIG Welding Technology: Employs precise control over welding current, travel speed, shielding gas flow, and thermal input to create smooth, uniform, low-oxidation weld seams with superior mechanical strength.
Precision Tube Forming System: Features multi-roll progressive forming technology that gradually transforms metal strips into round profiles with minimal residual stress and exceptional surface finish, utilizing high-wear-resistant alloy steel tooling.
High-Precision Transmission System: Utilizes heavy-duty gearboxes and precision-machined components to guarantee absolute mechanical synchronization and vibration-free torque delivery.
Intelligent Electrical Control System: Equipped with an intuitive PLC and HMI interface for real-time monitoring of speeds, welding metrics, system alarms, and production logs.
Main Applications
Decorative & Architectural Tubes: Furniture framing, handrails, stair railings, and interior design structures.
Industrial Stainless Steel Tubes: Heavy-duty equipment piping, mechanical structural tubes, and fluid transport lines.
Sanitary Grade Tubing: Food processing pipelines, beverage processing machinery, and pharmaceutical conveyance systems.
Heat Exchanger Tubes: Industrial boilers, thermal transfer units, and specialized cooling system piping.
Automotive Components: Exhaust system pipes, structural chassis elements, and high-precision fluid lines.
Complete Machine Configuration
A standard high-speed TIG tube production line incorporates the following synchronized stations:
- Hydraulic Uncoiler & Strip Accumulator
- Shear & End Welder / Strip Feeding Device
- Precision Forming Mill Section
- Advanced TIG Welding System & Shielding Gas Control
- Seam Cooling Unit & Optional Bead Rolling System
- Online Weld Grinding / Polishing Unit
- Sizing & Straightening Section
- High-Precision Computer-Controlled Cutting Machine
- Automatic Discharge Table & Bundling System
- Centralized Electrical Control Cabinet
Quality Assurance & Factory Testing
Every tube mill undergoes rigorous pre-shipment inspection and trial runs using customer-specified raw materials. Quality control protocols verify dimensional tolerances, straightness, and weld integrity through destructive and non-destructive testing guidelines, ensuring seamless integration upon arrival at the customer's facility.
Global Engineering & After-Sales Support
Customized Engineering: Tailored machinery design, plant layout planning, and tooling optimization matching specific production targets.
Technical Documentation: Comprehensive English operation manuals, electrical schematics, and maintenance guides.
Installation & Commissioning: Flexible deployment options including remote engineering assistance and on-site technical supervision for overseas projects.
Spare Parts Availability: Dedicated supply chain support for quick-wear parts, drive components, and precision welding torches.
